Gigabit PoE Extender/Switch, 5-Port PoE Splitter Repeater, 90W Input with 30-60W Output, 1000Mbps, IEEE 802.3af/at/bt for IP/PTZ C

Power Supply Application The PoE extender is designed without its own power source and needs to be powered by an upstream PoE switch/injector. It supports PoE devices with an input voltage of 44V-57V and does not support passive PoE devices.

Plug and Play It supports automatic power detection of devices and provides the correct power for your PoE devices. Just plug in the Ethernet cable and connect directly to the device without configuration. One Ethernet cable handles both network transmission and power supply simultaneously. When used with a PoE Ethernet power source, the PoE Extender can extend the network range up to 1312ft400 meters, easily solving the networking problem of multiple long-distance cameras.

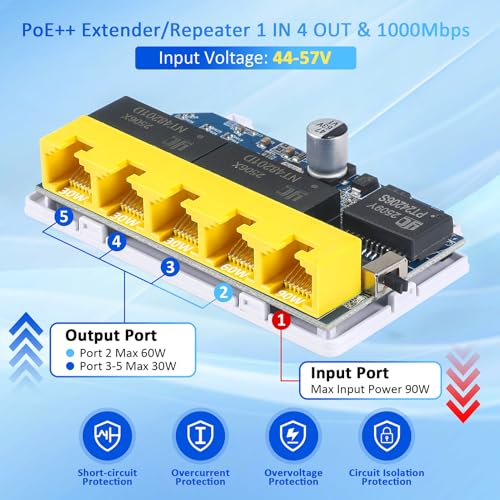

IEEE802.3af/at/bt The maximum power of the input port-1 is 90W under IEEE802.3bt. The maximum power of output port-3 to port-5 is 30W under IEEE802.3af/at, and port-2 is 60W under IEEE802.3bt. Each port can power standard PoE devices like IP phones, IP security, IP speakers, etc.

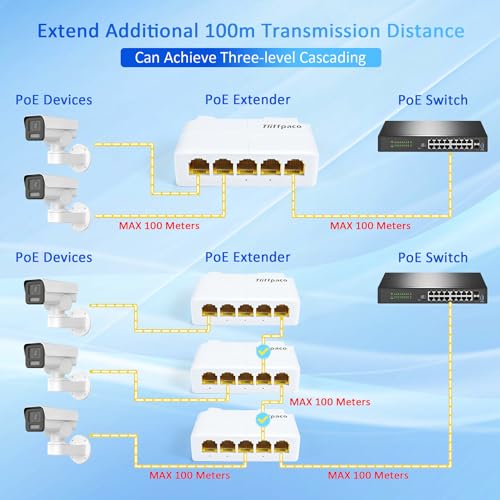

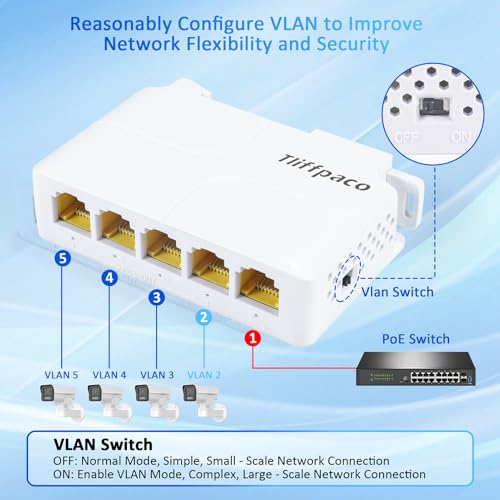

Support VLAN and 3 Levels CascadeWhen network transmission distances exceed 330 feet 100 meters, this extender becomes essential. It supports 3-level cascadingers can expand and extend the network without changing existing network system or adding other accessories. It supports VLAN isolation, preventing data leakage, and increase network security. Its applications range from attics and warehouses to hotels, DMX Christmas lighting, IoT setups, and smart communities.
